RMU-DG4
Product Description & Specifications

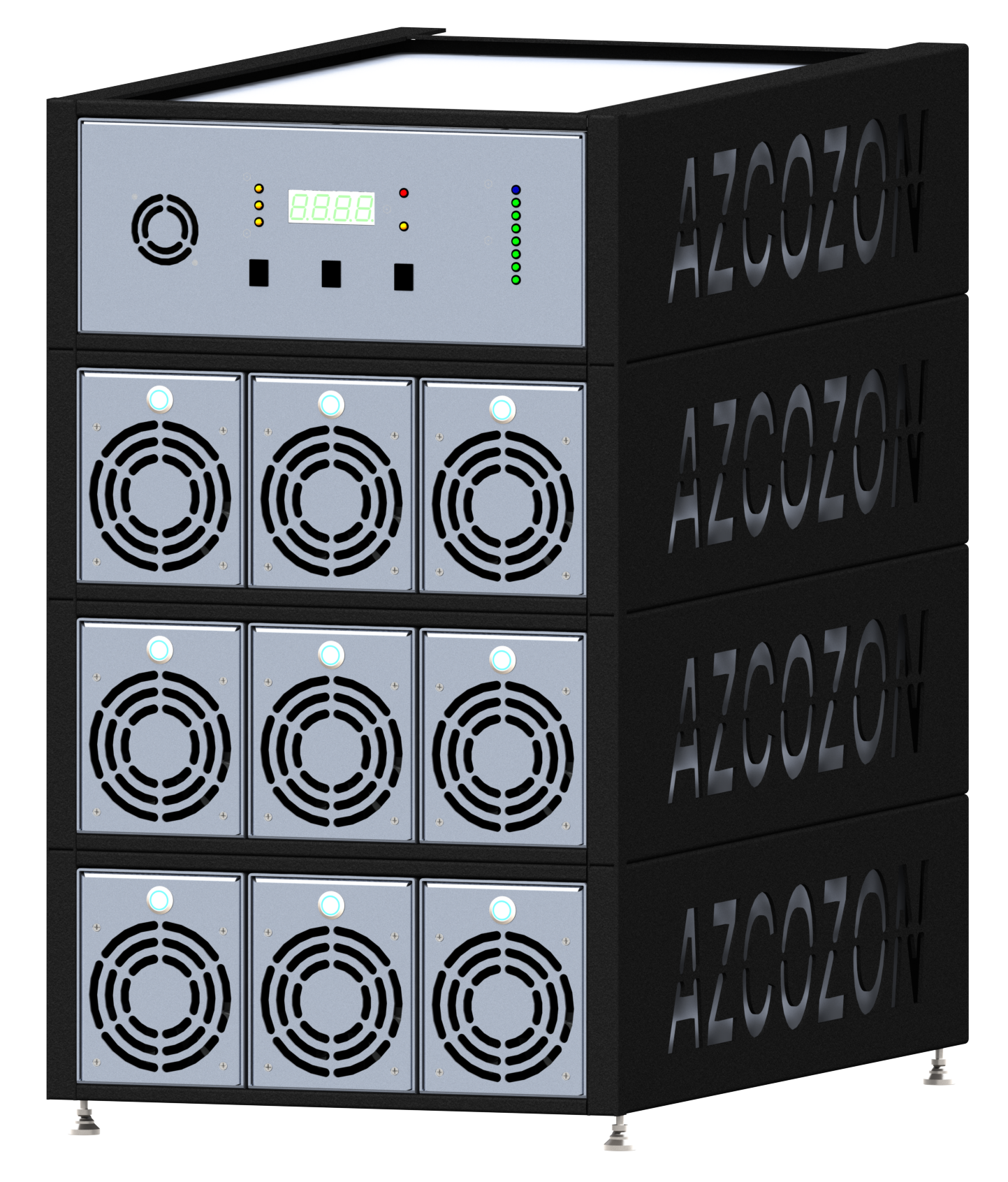

The RMU-DG4 is a rack mount Ozone generator which produces up to ~50 g/hr of ozone @ ~16 l/min of oxygen. This unit utilizes Dual quartz electrode technology. The versatility of this design allows it to be combined with many units to create modular system able to produce a wide variety of ozone outputs. Rack mounted units such as this require the RMC Controller and a BBWT balance barometer. The picture below depicts a full frame of RMU-DG4 ozone generators. A frame like this will have an output of 450 g/hr. For More information, visit our website.
General
| Voltage [VAC, 50/60Hz] | 100-240 |
|---|---|
| Power Consumption [W] | 550 |
| Ambient Temperature [°C] | 2 to 40 |
| Relative Humidity [%] | 92 |
| Mass [kg] | 9.0 |
| Dimensions [LxWxH][mm] | 700 x 138 x 168 |
| Installation | Rack Mount |
| Warranty | 3 Year |
Ozone
| Generation Process | Corona Discharge |
|---|---|
| Process Gas [bar] | 0.36 |
| Production On Oxygen | 50g/hr @ 16 lpm |
Options
| Adjustable Output | Via Controller |
|---|---|
| Interlock | Via Controller |
| Flow Meter | Via Controller |
| Oxygen Ready | S |
| Vacuum Switch | S |
Safety
| CSA File # | QAI |
|---|
