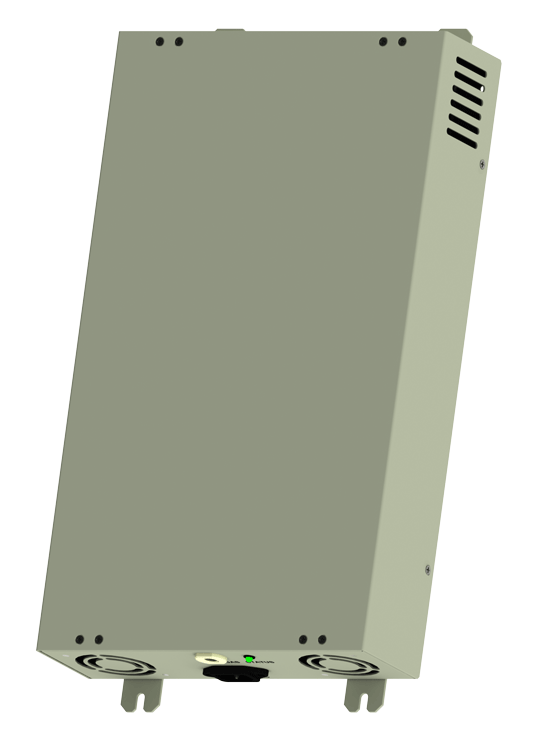

VMD-12
Product Description & Specifications
The all new VMD-12 is a wall mountable Air dryer unit that now uses environmental sensors to automatically adjust its programming to maximize performance in every possible situation. It can supply up to 12 Liters per Minute of dry air from ambient. Because of its capacity this air dryer can now provide dry air for up to 2 x VMUS-K units.
General
| Voltage [VAC, 50/60Hz] | 100-240 |
|---|---|
| Power Consumption [W] | ~225 (4A Max) |
| Ambient Temperature [°C] | 2 to 40 |
| Relative Humidity [%] | 80 |
| Mass [kg] | 4.4 |
| Dimensions [LxWxH][mm] | 435 x 260 x 78 |
| Installation | Wall Mount |
| Warranty | 3 Year |
Ozone
| Generation Process | Heat Cycling |
|---|---|
| Process Gas [bar] | Ambient |
| Capaicty | 12 lpm |
Options
| Attachable to VMUS-K | O |
|---|
Safety
| CSA File # | QAI |
|---|
