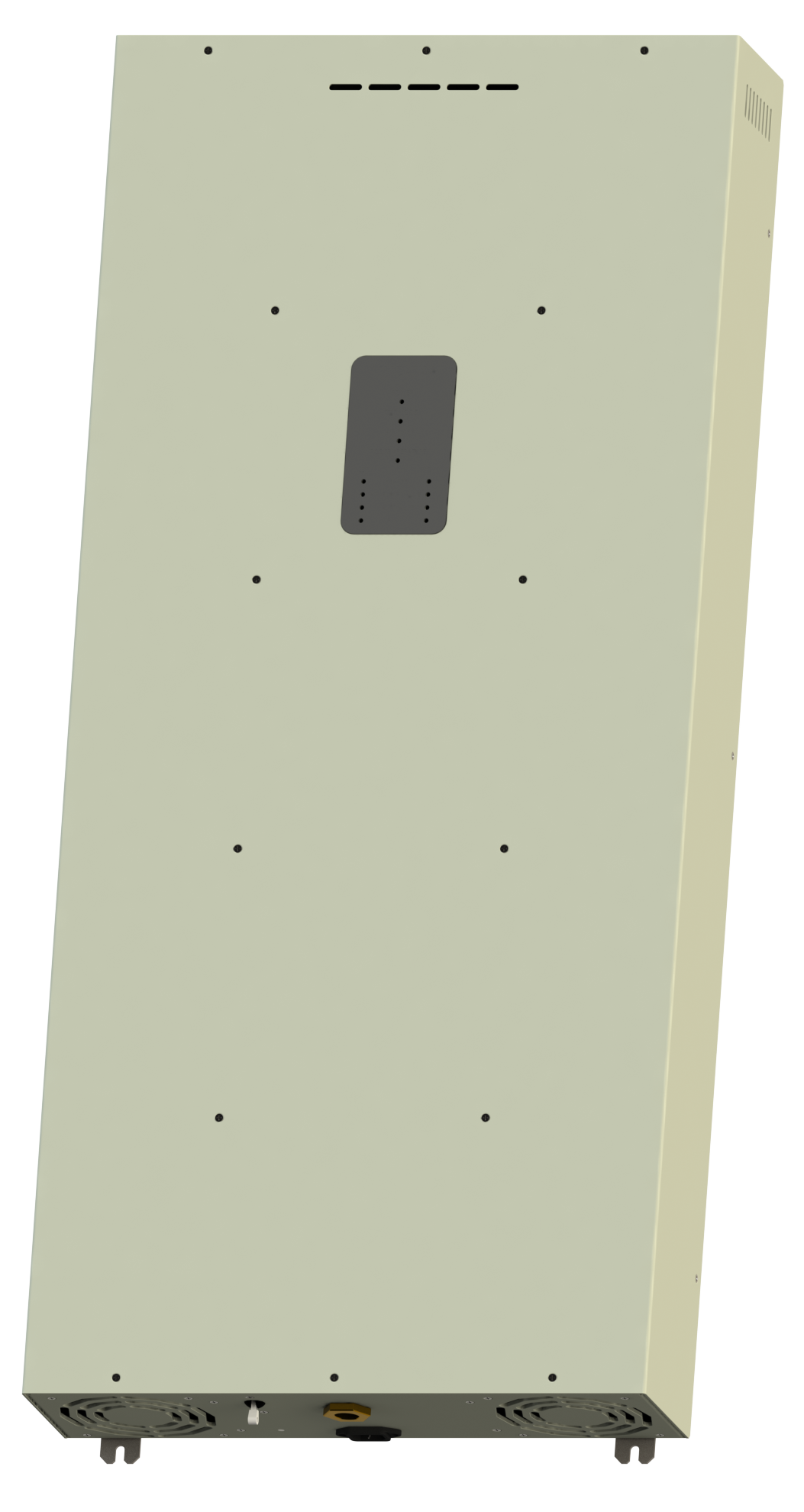

VMD-144
Product Description & Specifications
The all new VMD-144 is a wall mountable Air dryer unit that now uses environmental sensors to automatically adjust its programming to maximize performance in every possible situation. It can supply up to 144 Liters per Minute of dry air from ambient. Because of its capacity this air dryer can now provide dry air for a full frame of RMU-K4 units (9 units).
General
| Voltage [VAC, 50/60Hz] | 100-240 |
|---|---|
| Power Consumption [W] | 150 Ave (10A Max) |
| Ambient Temperature [°C] | 2 to 40 |
| Relative Humidity [%] | 80 |
| Mass [kg] | 33.5 |
| Dimensions [LxWxH][mm] | 1040 x 478 x 132 |
| Installation | Wall Mount |
| Warranty | 3 Year |
Ozone
| Generation Process | Heat Cycling |
|---|---|
| Process Gas [bar] | Ambient |
| Capacity (lpm) | 144 |
Options
| N/A | N/A |
|---|
Safety
| CSA File # | QAI |
|---|
